3G / HD-SDI CCTV Fiber Optic Converter Extender Metal Case With IR Remote Control

Brand Name : E-link

Model Number : LNK-SDIR Series

Certification : RoHS, CE,FCC

Place of Origin : China

MOQ : 1 pair

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 100000

Delivery Time : 5

Packaging Details : Standard Export Package

Product name : HD-SDI Fiber Extenders

Model : LNK-SDIR-20

Approvals : ISO9001, CE, RoHS, FCC

Weight : 0.6Kg

Casing : Metal Case

Mounting Options : Desk-top / Wall-mount

Warranty : 1 Year

Power Supply : DC5V/2A

Contact Now

HD-SDI over Fiber Extender with IR Remote Control

Model: LNK-SDIR Series

Overview

LNK-SDIR Series SDI Fiber extender transmits 1080P SDI signal over a single optical fiber cable up to 20 km. It supports IR pass-back function and SD-SDI, HD-SDI signal input.

LNK-SDIR Series HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal.

Features

· Extend HD-SDI signal over SC optical fiber cable;

· Transmit 1080P signal up to 20km;

· Support SD-SDI, HD-SDI signal input;

· Inherently immune to electromagnetic interference;

· Low signal loss, wide frequency band and strong anti-interference;

· Support IR pass-back function;

· Support interconnect with other HDbitT TX/RX

Application

3G / HD-SDI CCTV Fiber Optic Converter Extender Metal Case With IR Remote Control

Technical Indexes

Transmit protocol HDbitT
SDI signal format SD-SDI, HD-SDI
SDI rate 270Mb/s, 1.485Gb/s
SDI resistance 75Ω
Support resolution

SD-SDI signal:

480i@60Hz, 576i@50Hz

HD-SDI signal:

720P@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30Hz
Transmission Distance Extend 1080P resolution up to 20KM over SMF cables
IR remote control Support 20~60KHz IR remote control
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% non-condensing
MTBF > 200,000 hrs
Power supply DC5V/2A
Power Consumption: TX<10W
RX<10W
Dimension (LxWxH) 168x95x22mm
Color Black
Weight: 0.6Kg
Casing: Metal Case
Mounting Options: Desk-top / Wall-mount
Approvals ISO9001, CE, RoHS, FCC

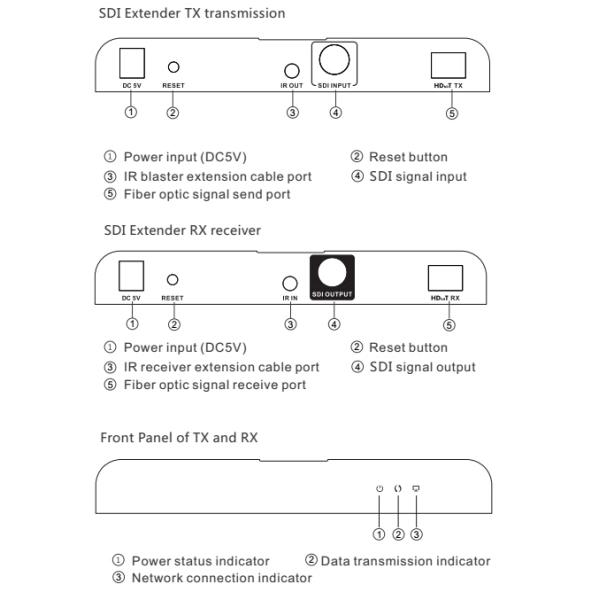

Panel Description

3G / HD-SDI CCTV Fiber Optic Converter Extender Metal Case With IR Remote Control

Ordering Information

Model Description
LNK-SDIR-20 HD-SDI over Fiber Extender with IR Remote Control, SMF, SC, 20KM
Mounting Options ► Default Wall Mount Bracket is included.
Power Options ► DC5V/2A Power Adapter
► Power Supply is included

3G / HD-SDI CCTV Fiber Optic Converter Extender Metal Case With IR Remote Control
